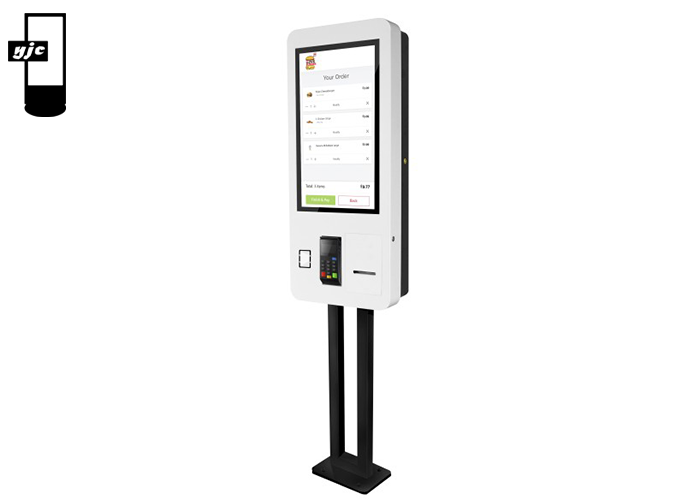

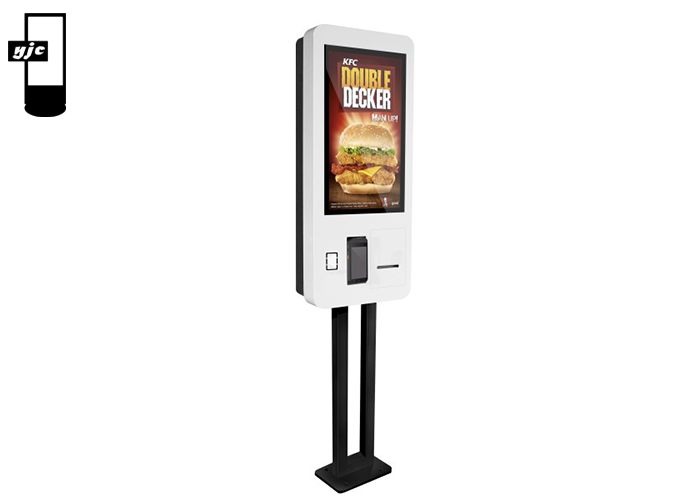

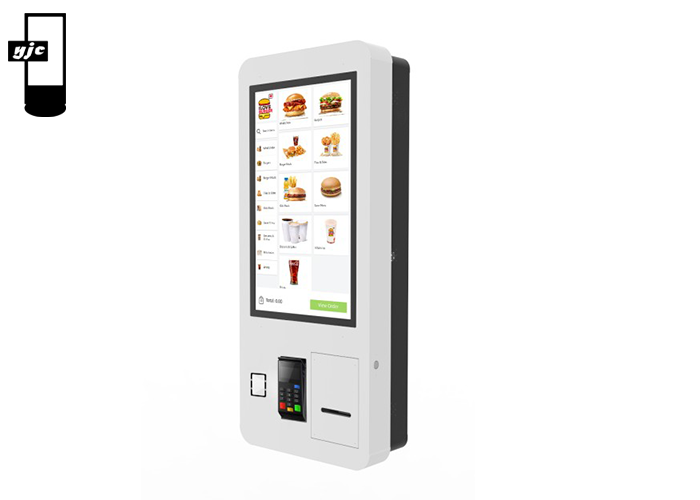

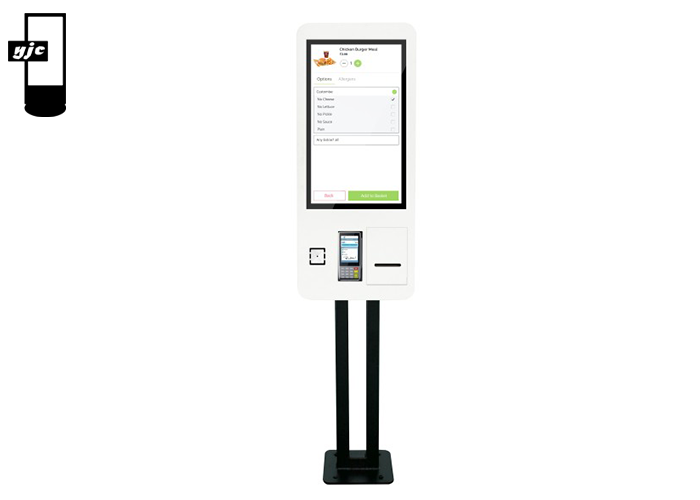

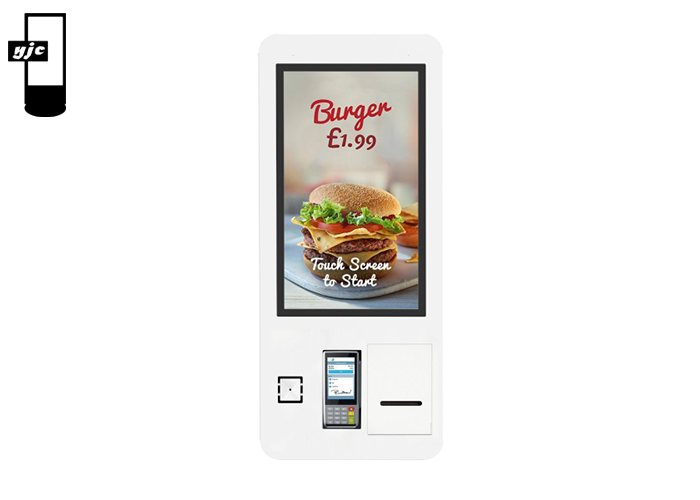

21.5 Inch Self Service Kiosk
21.5 Inch Self Service Kiosk
The self-service kiosk is an intelligent terminal device, which is suitable for various industries such as retail, catering, and medical care.
Through the intuitive touch screen operation interface, customers can easily complete self-service ordering, shopping, registration and other operations.
Highly customized, safe and reliable, supporting multiple payment methods.
The integrated design integrates hardware devices such as printers and scanners to save space.
It can improve service efficiency, save human resources, optimize customer experience, and bring higher operating efficiency and customer satisfaction to enterprises.
Through the intuitive touch screen operation interface, customers can easily complete self-service ordering, shopping, registration and other operations.
Highly customized, safe and reliable, supporting multiple payment methods.
The integrated design integrates hardware devices such as printers and scanners to save space.
It can improve service efficiency, save human resources, optimize customer experience, and bring higher operating efficiency and customer satisfaction to enterprises.
21.5 Inch Self Service Kiosk
Panel
| Size | Resolution | Brightness |
|---|---|---|
| 21.5"（15.6"~32" options） | 1920x1080 | 500(cd/m²) |
| Display Area | Contrast | Viewing Angle |
| 476.64×268.11 mm(H×V) | 1000:1 | 89°/89°/89°/89° |
| Aspect Ratio | Display Color | Operating temperature |
| 16:9 | 16.7M | 0℃~45℃ |
OS
| System | CPU | RAM |
|---|---|---|
| Android 11 | RK3568 quad core 2.0GHz | 2G |
| LAN | Wi-Fi | ROM |
| 10M/100M Ethernet | 802.11b/g/n/ac | 32G |
Printer
| Printing Method | Available Printing Width | Printing Speed |
|---|---|---|
| Thermal printing | 58mm or 80mm | 170 mm/s(max) |
Scanner
| Sensing Mode | Reading Accuracy | Field Of View |
|---|---|---|
| CMOS | ≥5mil | Horizontal 65°, Vertical 60° |
| Pixel | Scan Type | Data Interface |
| 648*488 CMOS | 1D/2D | USB HID-KBW interface, USB virtual serial port, RS-232 interface |
Touch
| Touch Technology | Touch Points | Touch Life |
|---|---|---|
| PCAP touch | 10 Points | 500 million times |
Power
| Input Voltage | Power | |
|---|---|---|
| AC100V~240V(50Hz/60Hz) | 58W |
